Wondfo Finecare FIA Meter III Plus FS-205

Finecare™ FIA Meter III Plus

Finecare™ FIA Meter III Plus is a fluorescence immunochromatographic semi-automatic analysing system with internal temperature control. It can test 20 items at the same time and help diagnose conditions such as infection, diabetes, cardiovascular diseases, renal injury and hormone, etc. Finecare™ FIA Meter III Plus fluorescent analyzer is a closed system.

Test Menu

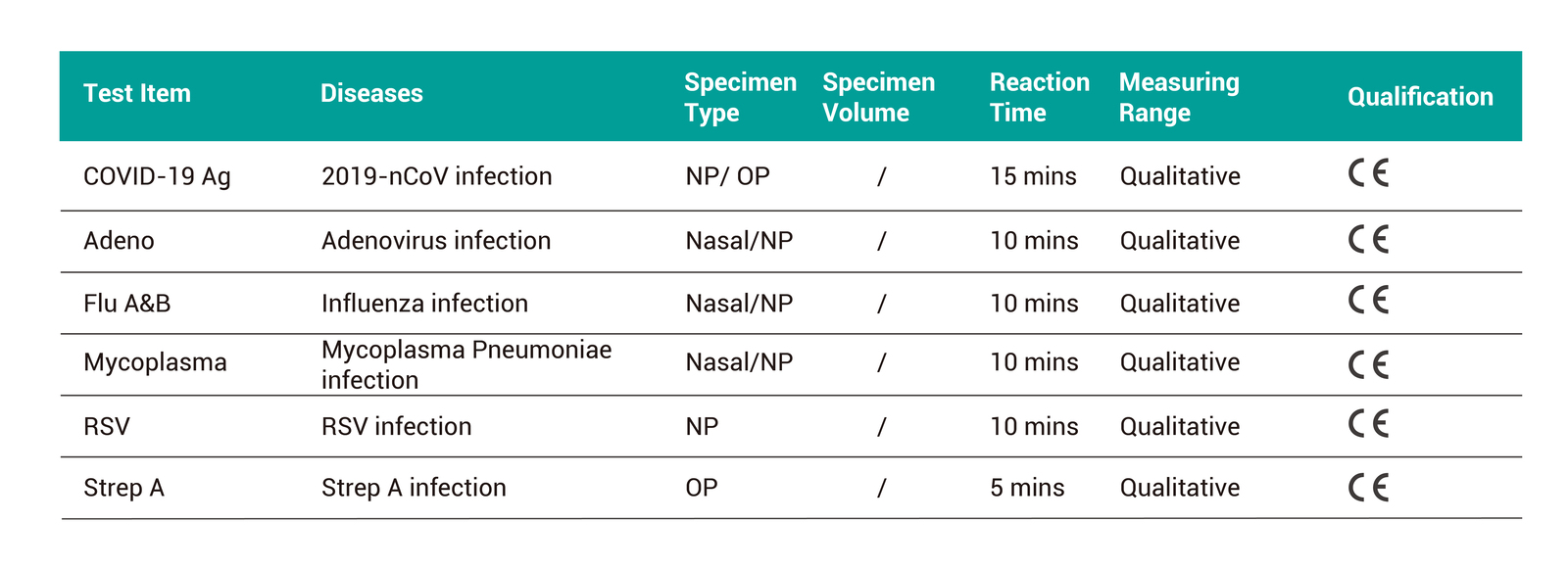

COVID-19

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
2019-nCoV Antibody	Whole Blood Serum Plasma	10μL	10 mins	Qualitative	Negative
2019-nCoV IgM				Qualitative	Negative
2019-nCoV IgM/IgG				Qualitative	Negative
2019-nCoV Antigen	NP/OP	/	15 mins	Qualitative	Negative
2019-nCoV RBD Antibody	Fingerstick or Venous WB/S/P	20μL	15 mins	Qualitative	Negative

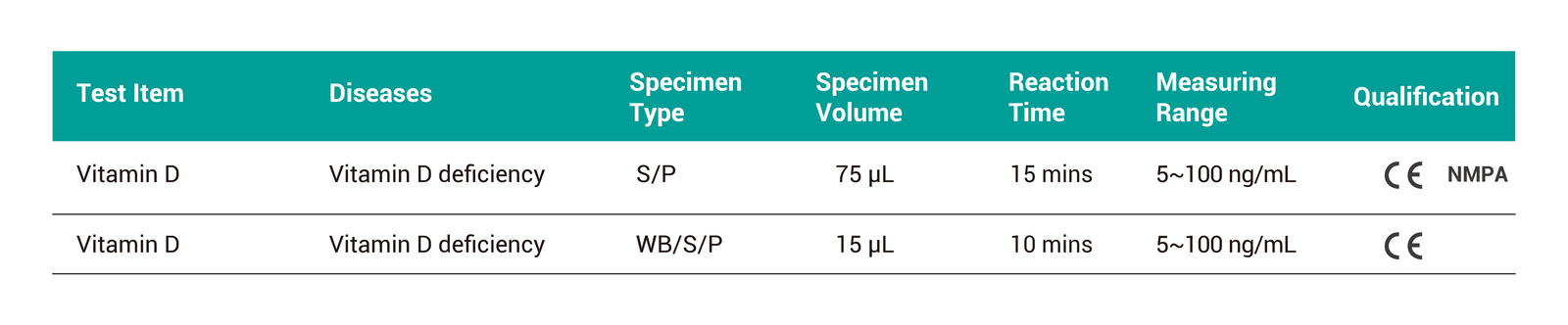

Vitamin

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
Vitamin D	Serum Plasma	75μL	15min	5-100 ng/mL	30-100 ng/mL

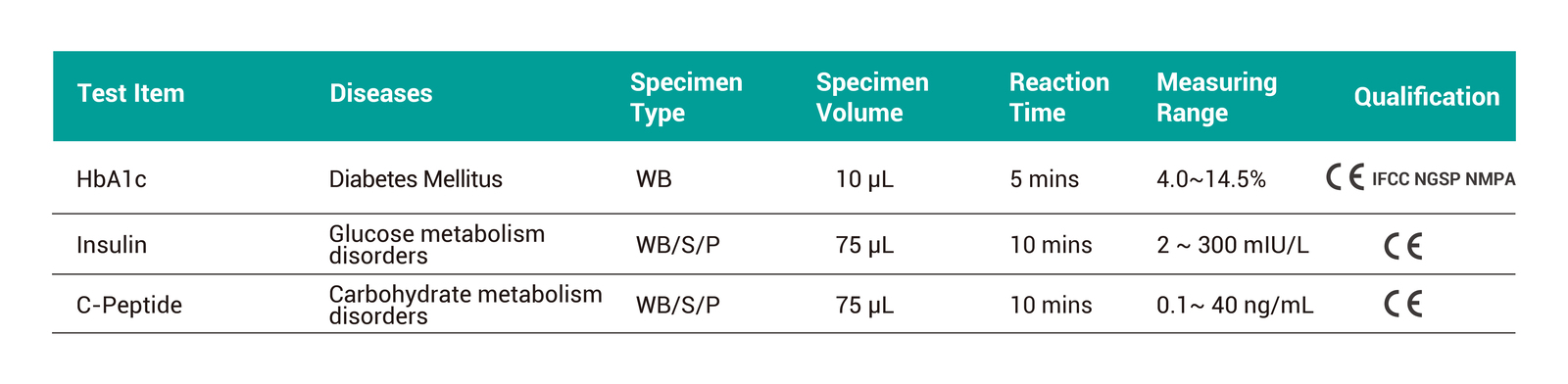

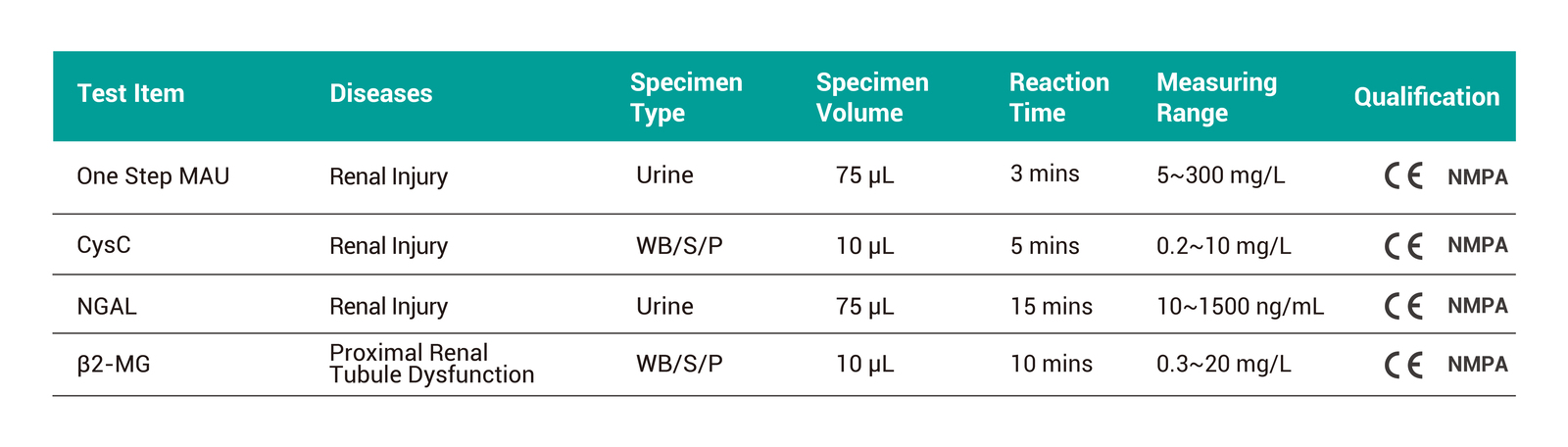

Diabetes & Renal Injury

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
HbA1c	Whole Blood (Fingerstick/Venous)	10μL	5 mins	4.0-14.5%	4-6.5%
MAU	Urine	75μL	3 mins	5-300 mg/L	0-20 mg/L
CysC	Whole Blood Serum Plasma	10μL	5 mins	0.2-10 mg/L	0.5-1.1mg/L
β2-MG	Whole Blood Serum Plasma	10μL	10 mins	0.3-20 mg/L	1.0-2.7 mg/L
NGAL	Urine	75μL	15 mins	10-1500 ng/mL	≤131.7ng/mL

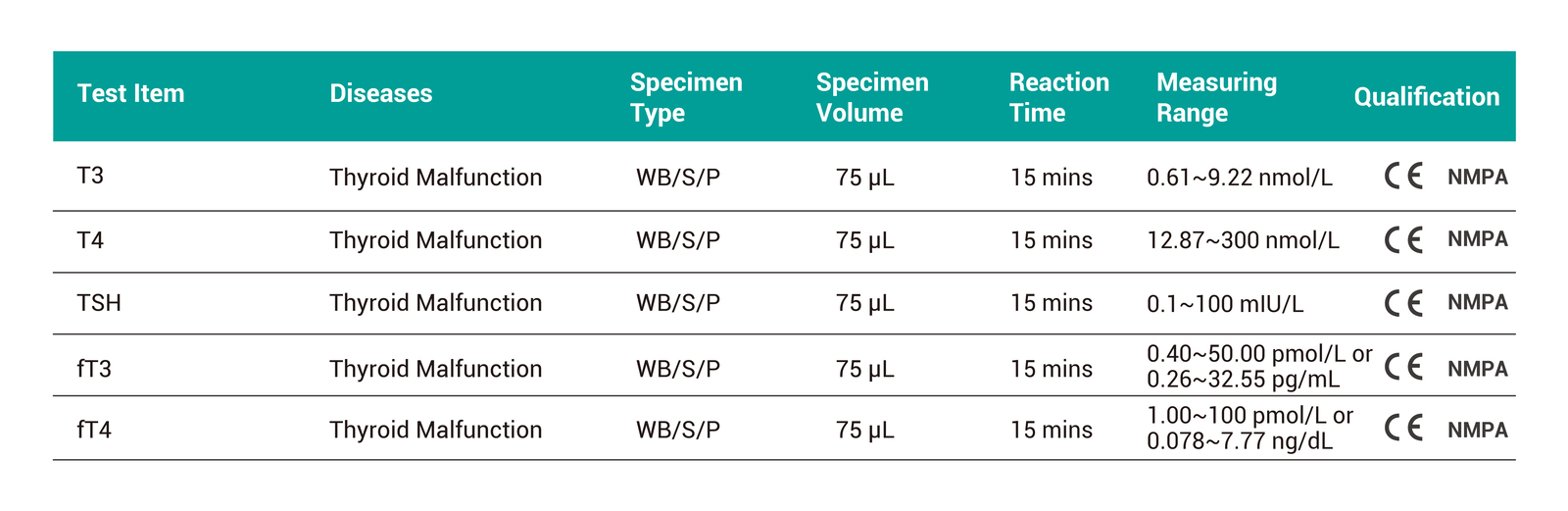

Thyroid Function

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
T3	Whole Blood Serum Plasma	75μL	15 mins	0.61-9.22nmol/L	1.23-3.07nmol/L
T4				12.87-300nmol/L	66-181 nom/L
TSH				0.1-100 mlU/L	0.3-4.2mlU/L
fT3				0.40-50.00pmol/L (0.26-32.55pg/mL)	2.8-7.1pmol/L (1.82-4.61 pg/ml)
fT4				1.00-100 pmol/L (0.078-7.77ng/dl)	12-22 pmol/L (0.94-1.72 ng/dL)

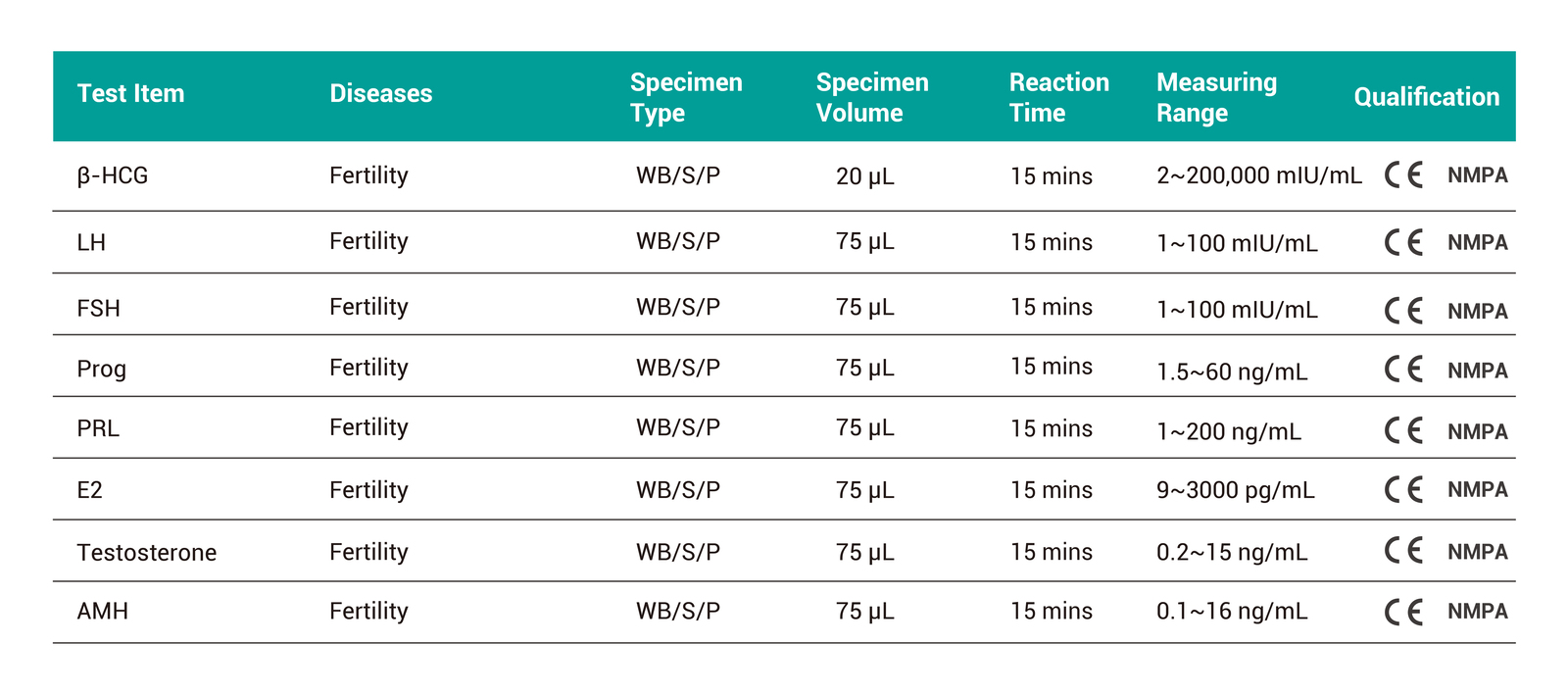

Fertility

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
β-HCG	Whole Blood Serum Plasma	20μL	15 mins	2-200,000mlU/mL	5 mlU/mL
LH	Whole Blood Serum Plasma	75μL	15 mins	1-100mlU/mL	Male: 1.70-8.60 mIU/mL; Female: Follicular phase: 2.95-13.65 mIU/mL Ovulation phase：13.65-95.75 mIU/mL Luteal phase：1.25-11.00 mIU/mL Menopause phase：8.24-55.23 mIU/mL
FSH	Whole Blood Serum Plasma	75μL	15 mins	1-100mlU/mL	Male: 1.50-12.40 mIU/mL Female: Follicular phase：4.46-12.43 mIU/mL Ovulation phase：4.88-20.96 mIU/mL Luteal phase：1.96-7.70 mIU/mL Menopause phase： 22.70-130.00 mIU/mL
Prog	Whole Blood Serum Plasma	75μL	15 mins	1.5-60ng/mL	Male: 0.2-1.5 ng/mL Female: Follicular phase: 0.2-2.0 ng/mL Ovulation phase: 0.7-3.5 ng/mL Luteal phase: 3.0-30 ng/mL Menopause phase: 0.1-0.9 ng/mL 7 weeks of pregnancy: 24.5±7.6 ng/mL 9-12 weeks of pregnancy: 38.0±13.0 ng/mL
PRL	Whole Blood Serum Plasma	75μL	15 mins	1-200ng/mL	Female（non-pregnant): 4.60-25.07 ng/mL Male: 3.45-17.42 ng/mL
E2	Whole Blood Serum Plasma	75μL	15 mins	9-3000pg/mL	Male: <85 pg/mL Female: Follicular Phase: 12-262 pg/mL Ovulation: 40-396 pg/mL Luteal Phase: 21-381 pg/mL Menopause: <190 pg/mL Pregnancy: >145 pg/mL
Testosterone	Whole Blood Serum Plasma	75μL	15 mins	0.2-15ng/mL	Male: 20-49 years old, 1.61-8.41 ng/mL ≥50 years old, <0.61 ng/mL Female: 20-49 years old, ≤0.80 ng/mL ≥50 years old, <0.71 ng/mL
AMH	Whole Blood Serum Plasma	75μL	15 mins	0.1-16ng/mL	Male: 20-60 years old, 0.92-13.89 ng/mL Female： 20-29 years old, 0.88-10.35 ng/mL 30-39 years old, 0.31-7.86 ng/mL 40-50 years old, ≤5.07 ng/mL

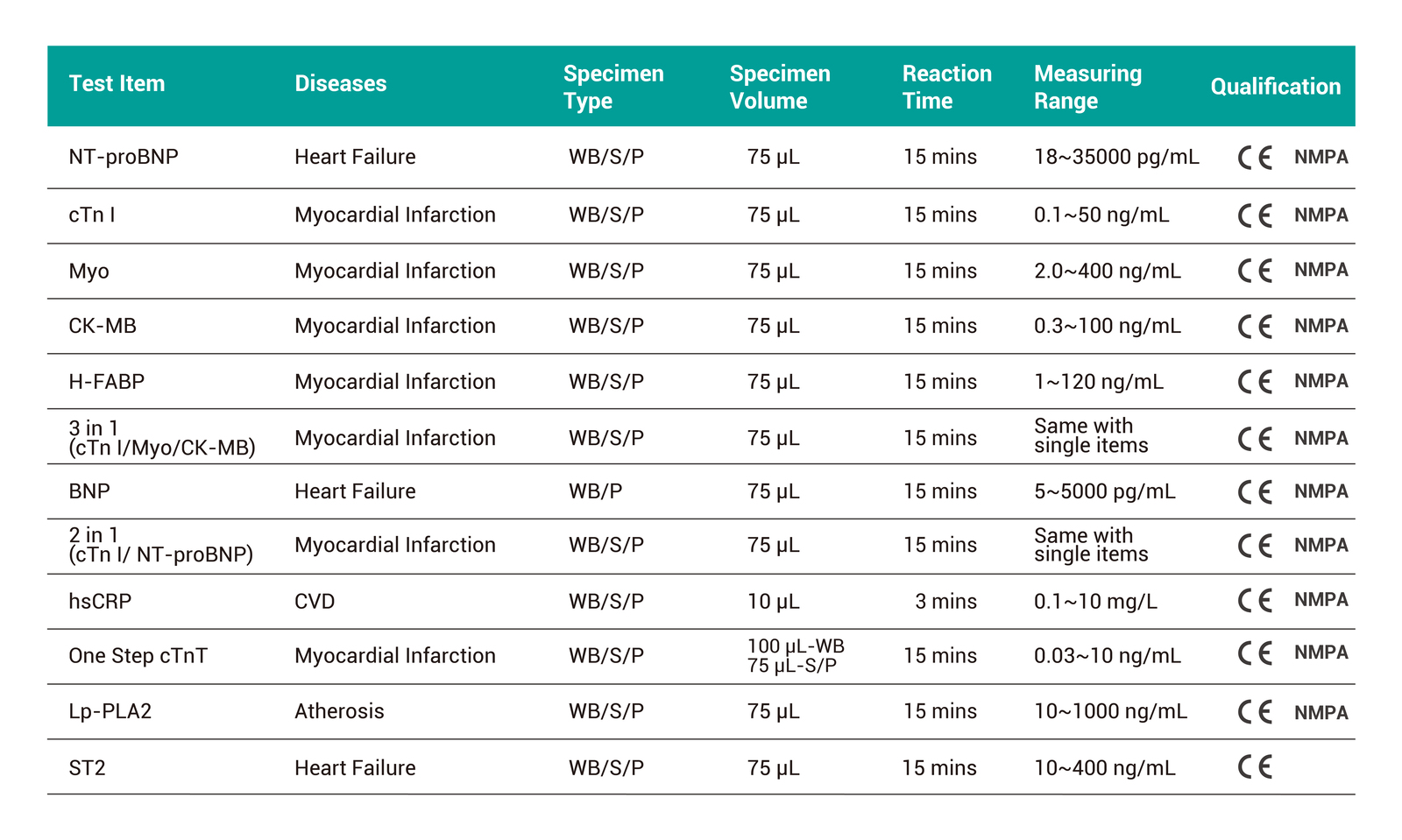

Cardiac Markers

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
NT-proBNP	Whole Blood Serum Plasma	75μL	15 mins	18-35000pg/mL	＜75 years old 0-300 pg/mL ≥ 75 years old 0-450 pg/mL
CTnI				0.1-50ng/mL	0-0.3 ng/mL
Myo				2.0-400ng/mL	0-58 ng/mL
CK-MB				0.3-100ng/mL	0-5 ng/mL
3 in 1 (cTnl/MYO/CK-MB)				Same with the single item	Same with the single item
BNP	Whole Blood Plasma			5-5000pg/mL	0-100 pg/mL
H-FABP	Whole Blood Serum Plasma			1-120ng/mL	0-7ng/mL
2 in 1 (cTnl/NT-proBNP）				Same with the single item	Same with the single item
hsCRP		10μL	3 mins	0.1-10 mg/L	≤1.0 mg/L
cTnT		100μL for whole blood; 75μL for plasma/serum	15 mins	0.003-10 ng/mL	0-0.1 ng/mL
Lp-PLA2		75μL	15 mins	10-1000 ng/mL	＜225 ng/mL

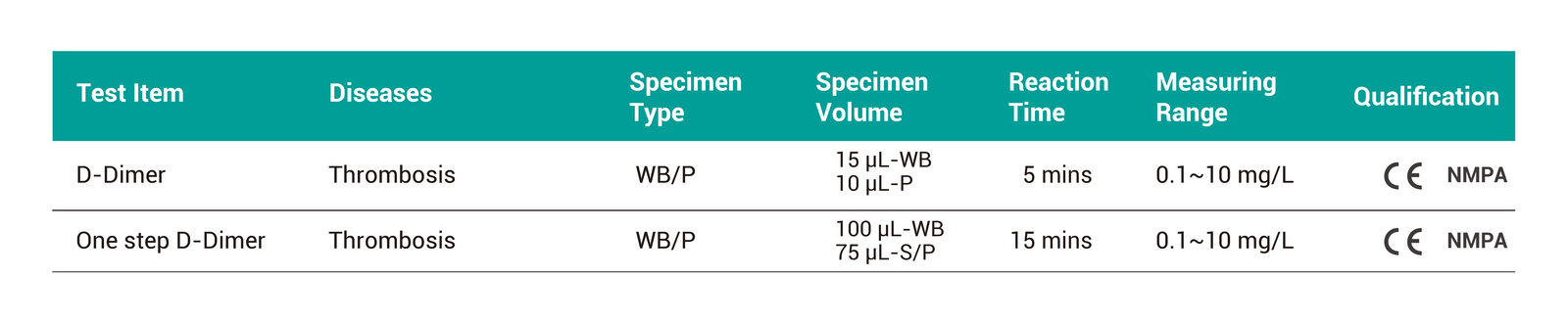

Coagulation

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
D-Dimer	Whole Blood Plasma	15μL for whole blood 10μL for plasma	5 mins	0.1-10 mg/L	0-0.5 mg/L
D-Dimer one-step	Whole Blood Plasma	100μL for whole blood 75μL for plasma	15 mins	0.1-10 mg/L	0-0.5 mg/L

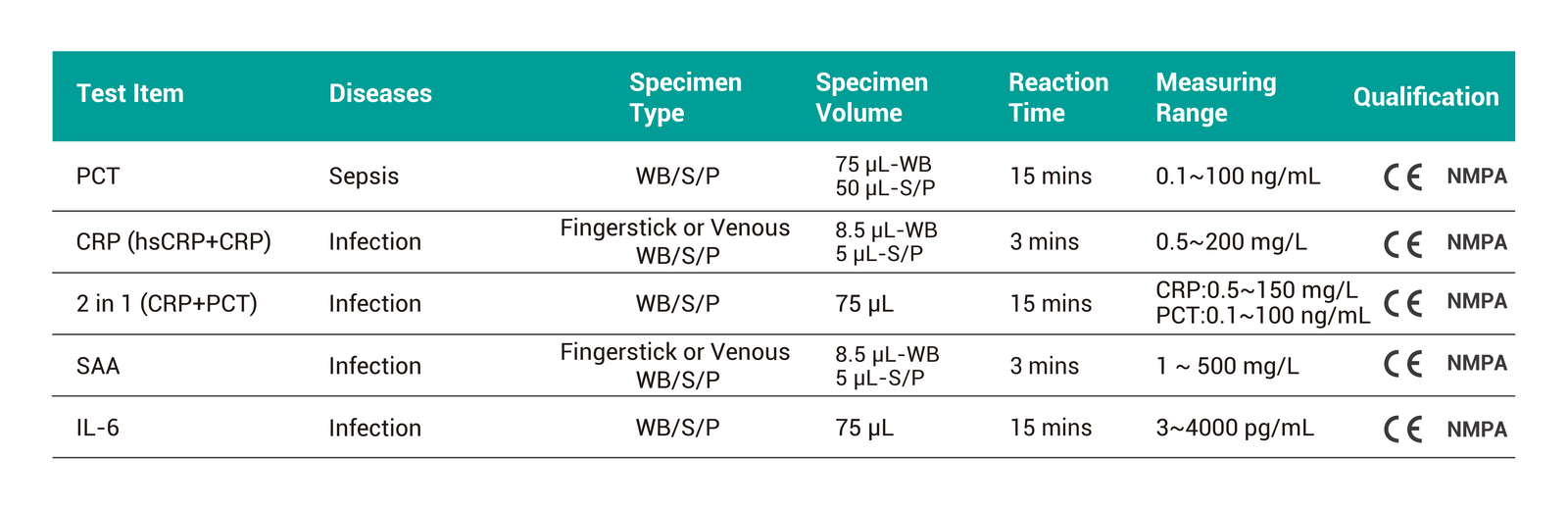

Inflammation Markers

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
PCT	Whole Blood Serum Plasma	75μL for whole blood 50 μL for serum/plasma	15 mins	0.1-100ng/mL	0-0.5 ng/L
CRP (hsCRP+CRP)		8.5μL for whole blood 5 μL for serum/plasma	3 mins	0.5-200mg/L	CRP: 0-10 mg/L HsCRP: 0-1 mg/L
SAA		10μL	15 mins	1.0-300mg/L	0-10 mg/L
2 in 1 (CRP+PCT)		75μL		CPR: 0.5-150mg/L PCT: 0.1-100mg/L	CPR: ＜10mg/L PCT: ＜0.5mg/L
IL-6		75μL		3-4000 pg/Ml	≤10 pg/mL

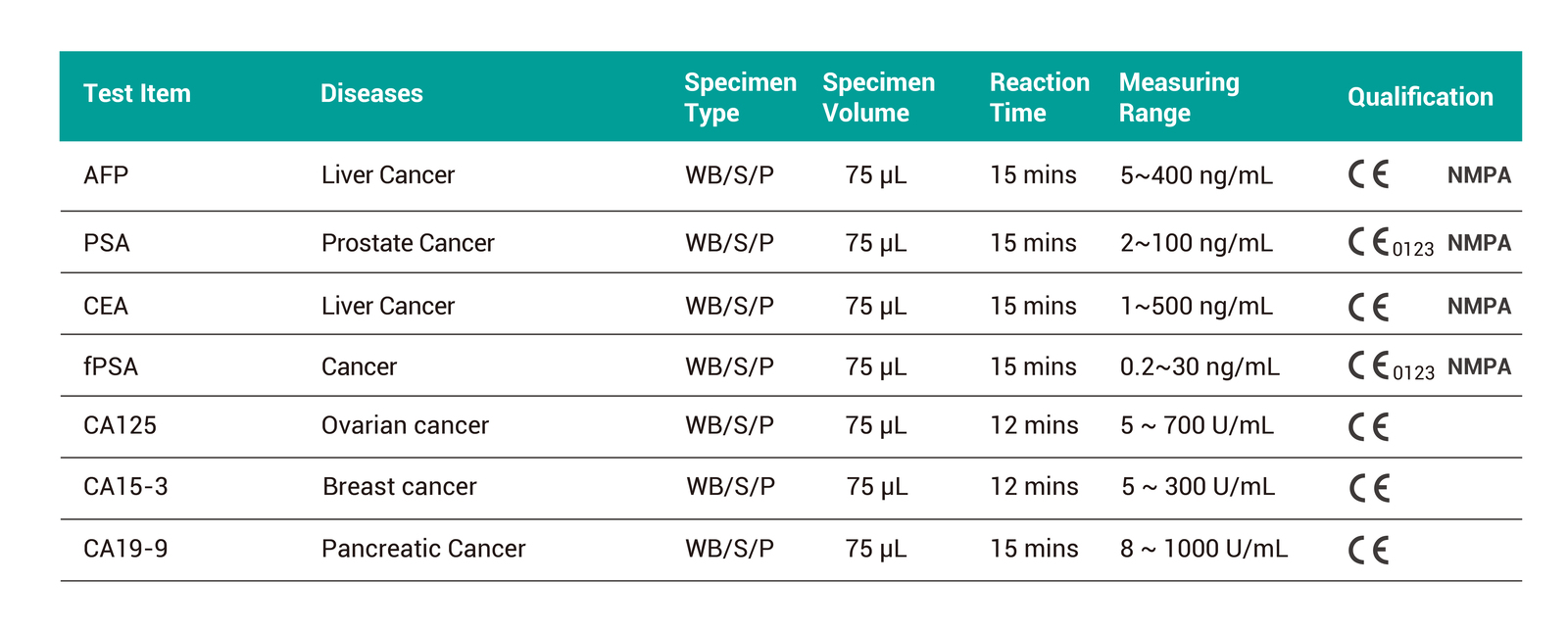

Tumor Markers

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference
AFP	Whole Blood Serum Plasma	75μL	15 mins	5-400 ng/mL	0-20 ng/mL
PSA				2-100 ng/mL	0-4 ng/mL
CEA				1-500 ng/mL	0-5 ng/mL
fPSA				0.2-30 ng/mL	＜1 ng/mL

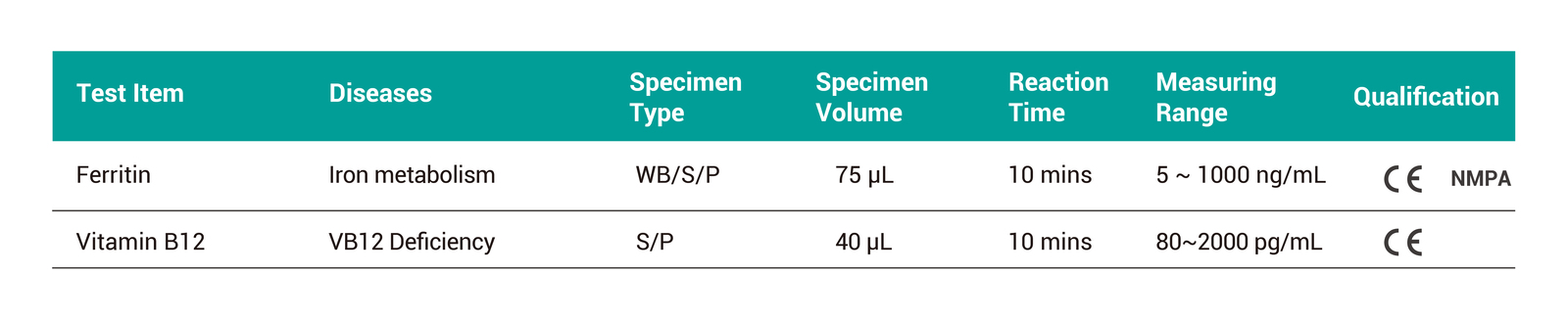

Others

Items	Sample Types	Sample Size	Reaction Time	Measuring Range	Clinical Reference

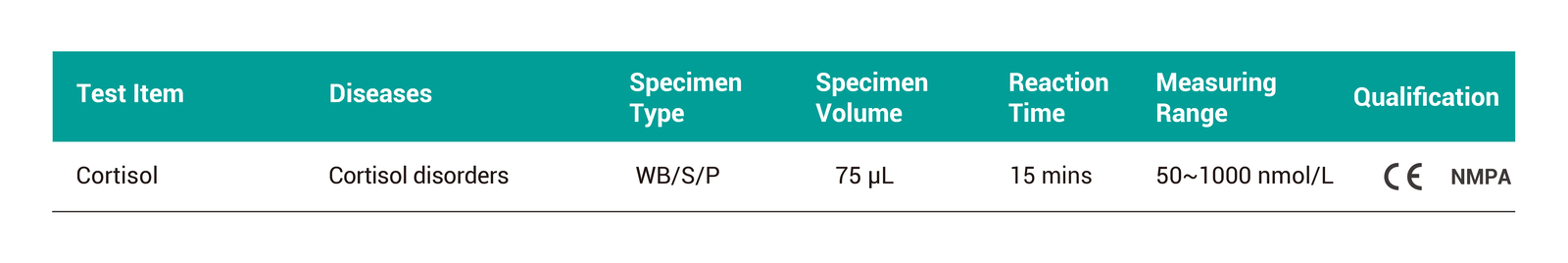

Cortisol	Whole Blood Serum Plasma	75μL	15 mins	50~1000 nmol/L	7:00~10:00a.m.: 134~522nmol/L 4:00~8:00p.m. 77~317nmol/L

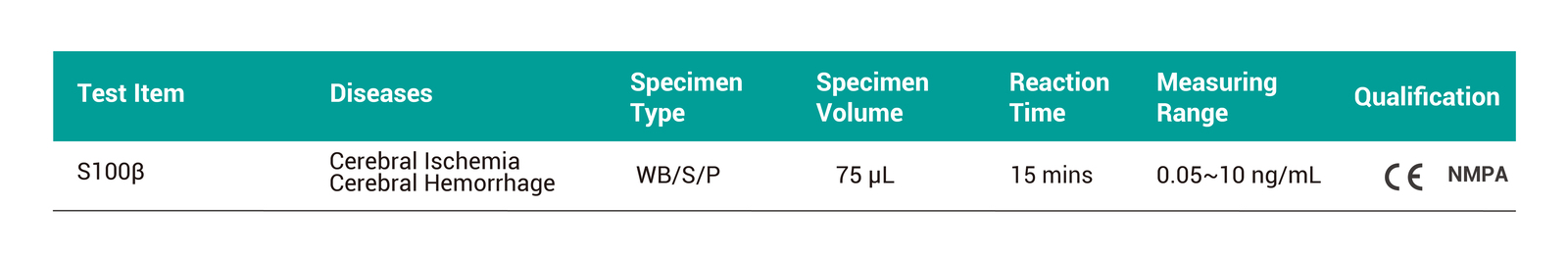

S100β			15 mins	0.05~10 ng/mL	< 0.2 ng/mL
Ferritin			10 mins	5 ~ 1000 ng/mL	Male 30-400 ng/mL Female 13-150 ng/mL
Vitamin D	Serum/Plasma		15 mins	5-100 ng/mL	30-100 ng/mL

Benefits

Rapid Test

Fast Detection, running 200 tests per hour.
Multi-Channel for Higher Throughput

20 channels, test more items at one time.
Accurate & Reliable

Good Correlation with CLIA method.
Temperature Control

Provide Better Reaction Condition.

Specification

Description
Technologies	Built-in thermal printer 10'' LED touch screen LIS/HIS connection ID chip
Sample size	75μL
Standards	CE, NGSP, IFCC
Dimension (H×W×D)	480.5x396x374mm
Weight	19.5kg
Application	Laboratory, ER, ICU, Clinics, GP office
